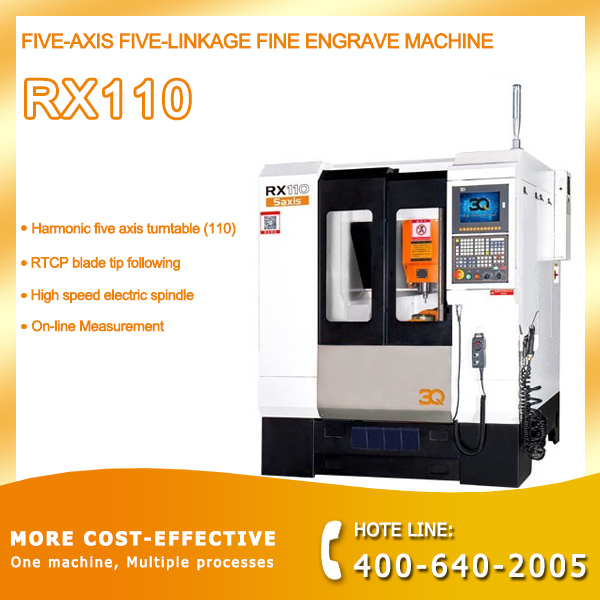

Five-axis five-linkage fine engrave machine RX110

3Q Five Axis Five Linkage Precision Engraving Machine RX110, a sharp tool for machining small parts with five axes. It can perform five axis linkage machining and has functions such as high-precision carving, milling, grinding, cutting, drilling, etc. It is suitable for five axis machining of die castings, titanium alloy parts, molds, optical molds, and complex hardware components. A machine has multiple functions and is equipped with functions such as automatic tool changing, in machine measurement, intelligent correction, etc. It is a powerful and cost-effective CNC machining equipment. Reduced procurement costs for enterprises and simplified the process of CNC machining. Five axis precision carving machine can also be called five axis carving machine, five axis engraving and milling machine, etc.

Five-axis five-linkage fine engrave machine RX110

Harmonic five-axis turntable	RTCP tip following
High Speed Electric Spindle	On-line Measurement System
CNC operating system	Rigid tapping
Handwheel controller	36000 rpm spindle
Contact tool setting instrument	Screw chip removal machine
Constant temperature oil cooler	Laser tool setting instrument
Heat exchange of electric cabinet	Oil Mist Collector
Servo tool magazine
Quantitative automatic lubrication
Coolant circulation system
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Typical application of five-axis five-linkage fine carving machine RX110

Medical Device Parts

Automobile mould insert

Impeller/scroll

Musical Instrument Accessories

Gear die and parts

Brittle and hard material

Ornaments/Handicrafts

Die Casting Parts

Jig type structural member

Composite processing structural part

Performance parameters of five-axis five-linkage fine carving machine RX110

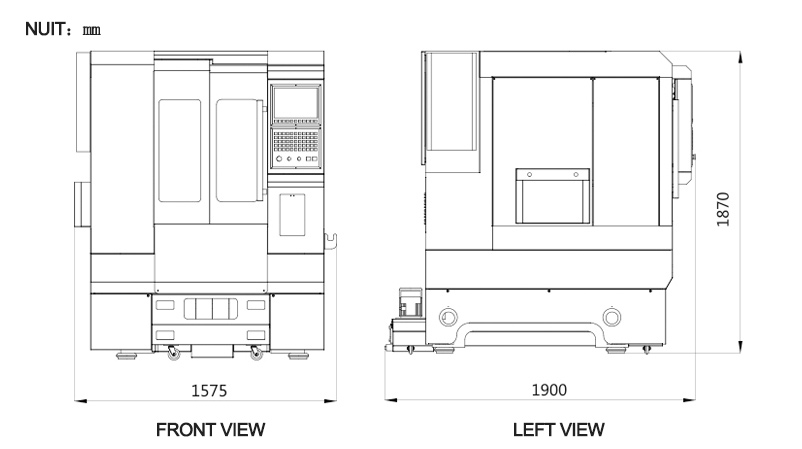

Dimension of five-axis five-linkage fine carving machine RX110
