Universal fine carving machine X10

3Q universal fine engraving machine X10 has the functions of high-precision engraving, milling and grinding, drilling and tapping, cutting and so on. It is suitable for the processing of large-format non-metallic materials, aluminum, copper and other metal materials, electronic fixtures, acrylic panel cutting, large-format panel moulds, etc. With the functions of on-machine measurement, intelligent correction and screw chip removal, 3q universal fine engraving machine X8 is a precision machining equipment with high cost performance. Precision carving machine can also be called precision carving machine, precision carving milling machine and so on.

General Carving Machine X10 Equipment Features

Mechanical structure: The crossbeam and the column adopt an integral casting structure, and the body adopts the integral cast iron design of the floor reinforcement, with strong vibration resistance.

Motion module: the bearing end adopts high precision linear module to improve the assembly precision, and cooperates with imported grinding screw rod and guide rail to keep high precision and smoothness when the machine tool runs at high speed.

CNC system: Delta control system, the use of bus control program, greatly improving the equipment response speed and resolution, arc position processing More uniform speed, absolute encoder makes the machine farewell to the era of zero, to achieve zero error of repeated positioning accuracy of the machine.

High speed motorized spindle: Medium 100mm motorized spindle is adopted to ensure torque and rigidity, reduce the weight of Z-axis and avoid impact and vibration caused by excessive inertia.

Tool magazine: Workpieces and tools can be cooled by cutting oil, and alcohol spray can also be selected.

General Carving Machine X10 Standard Configuration

Rhenium sodium gram control system	Axis of rotation
Handwheel controller	36000rpm
Contact tool setting instrument	On-line Measurement System
SMC positive pressure seal	Laser tool setting instrument
Quantitative pressurizing type automatic lubricating
Heat exchange of electric cabinet
Mainshaft constant temperature oil cooler
Pneumatic protective curtain
Hand-held start-stop button box
Coolant circulation system
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Performance parameters of universal fine carving machine X10

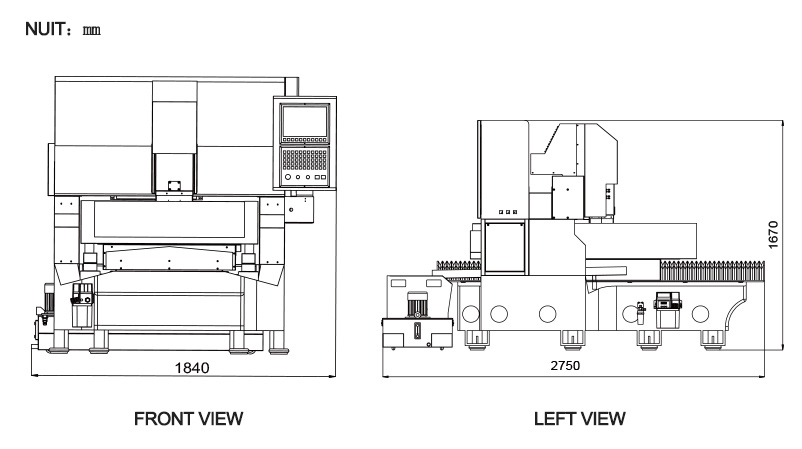

Universal fine carving machine X10 overall dimension
