Five-axis machine R series

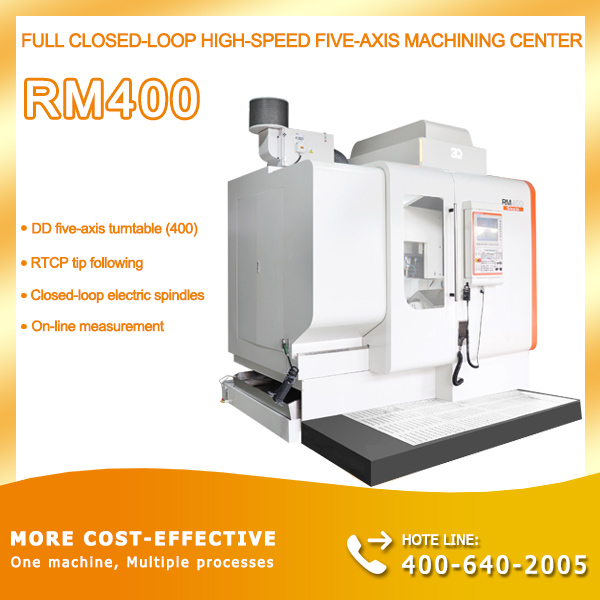

Full closed-loop high-speed five-axis machining center RM400

Phone: +86(0)13761721518
Tel: 400-640-2005
Email: timpei@aliyun.com
The 3Q full closed-loop high-speed five axis machining center RM400, from rough to fine, is completed in one go. Can perform five axis linkage machining, suitable for five axis machining of die castings, titanium alloy precision parts, prec
Inquiry

The 3Q full closed-loop high-speed five axis machining center RM400, from rough to fine, is completed in one go. Can perform five axis linkage machining, suitable for five axis machining of die castings, titanium alloy precision parts, precision molds, optical molds, and complex hardware components. Featuring high rotational speed, high rigidity, and high feed rate, it can be widely used in fields such as high rigidity drilling, vigorous milling, and high-speed precision machining. The integration of rough and precision machining functions with a single machine greatly reduces the procurement cost of the enterprise and simplifies the machining process. It is a high-end CNC machining equipment with advanced technology and simple operation. The 3Q fully closed-loop high-speed five axis machining center RM400 is also known as a five axis high-speed CNC or five axis CNC high-speed machine.

Full closed-loop high-speed five-axis machining center RM400 Configuration

DD five-axis turntable	On-line Measurement System
Closed-loop electric spindles	Laser tool setting instrument
CNC operating system
Handwheel controller
Contact tool setting instrument
Constant temperature variable frequency oil cooler
Electric cabinet air conditioning
Mechanical arm disc tool magazine
Screw chip removal machine
Rigid tapping
RTCP tip following
Oil Mist Collector
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Typical application of full closed-loop high-speed five-axis machining center RM400

Medical Device Parts

Automobile mould insert

Impeller/scroll

Musical Instrument Accessories

Gear die and parts

Brittle and hard material

Ornaments/Handicrafts

Die Casting Parts

Jig type structural member

Composite processing structural part

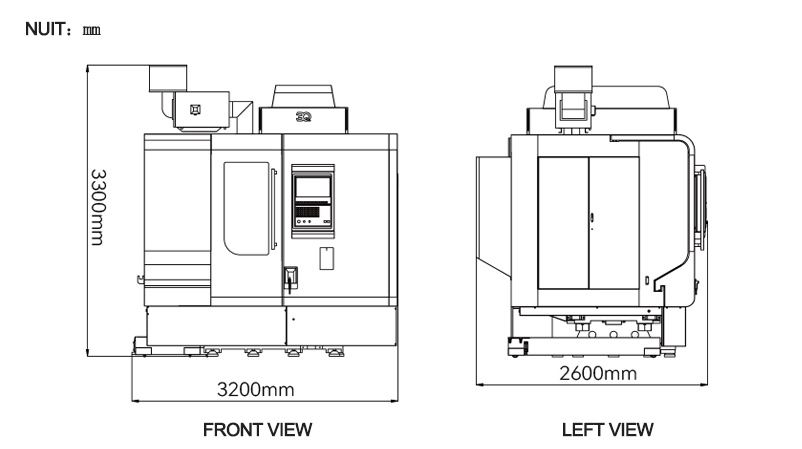

Performance parameters of full closed-loop high-speed five-axis machining center RM400

Project	Standard Value
Model	RM400
X/Y/Z axis motion positioning accuracy	0.002 / 0.002/ 0.002mm
A/C axis motion positioning accuracy	±5 (arc-sec)
Repeated positioning accuracy of X/Y/Z axis	0.002 / 0.002/ 0.002mm
Repeated positioning accuracy of A/C axis	6 (arc-sec)
Working stroke of X/Y/Z axis	400 /700 / 400mm
Rotation angle of A/C axis	±120°/ 360°
Diameter of table	Φ400mm
Processing diameter	400mm
Maximum Working Load	200kg
Maximum spindle power/maximum torque	15Kw/39.6N.m
Spindle Nose to Table Distance	150-550mm
Maximum spindle speed	18000rpm(Φ150) closed loop
Shank Specification	HSK63
Tool magazine capacity	30 pack (Robot tool change)
X/Y/Z axis rapid movement speed	24m/min
A/C axis rapid movement speed	100/150rpm
Maximum X/Y/Z axis cutting speed	12m/min
Maximum A/C axis cutting speed	100/150rpm
Driving System	Absolute value servo system
Control system	Nanobus system
Working Voltage	Three phase 380V/50Hz
Air supply pressure	≥0.55MPa
Total weight of machine tool	7000Kg
Each equipment is tested and debugged by ball bar instrument before leaving the factory.
