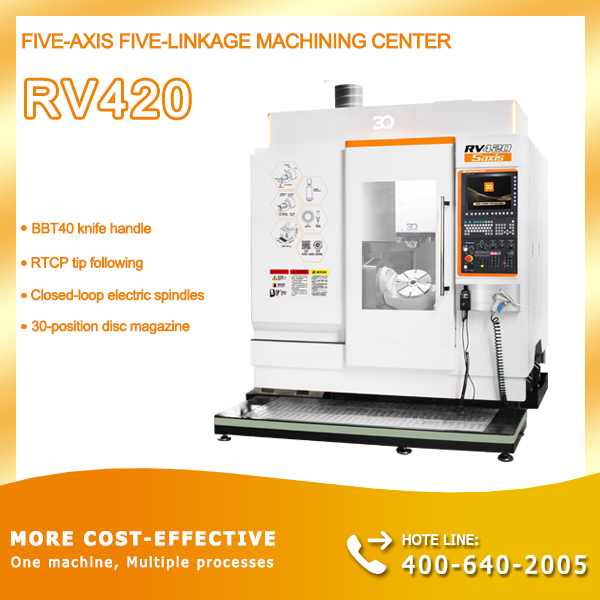

Five-axis five-linkage machining center RV420

Phone: +86(0)13761721518
Tel: 400-640-2005
Email: timpei@aliyun.com
3Q five axis five linkage machining center RV420, a sharp tool for heavy cutting five axis machining. It can perform five axis and five linkage machining, with functions such as high-precision carving, milling, grinding, cutting, drilling,
Inquiry

3Q five axis five linkage machining center RV420, a sharp tool for heavy cutting five axis machining. It can perform five axis and five linkage machining, with functions such as high-precision carving, milling, grinding, cutting, drilling, etc. It is suitable for five axis machining of die castings, titanium alloy precision parts, precision molds, optical molds, and complex hardware components. A machine has multiple functions and is equipped with functions such as automatic tool changing, in machine measurement, intelligent correction, etc. It is a powerful and cost-effective precision CNC machining equipment. Reduced procurement costs for enterprises and simplified the process of CNC machining. The 3Q five axis five linkage machining center is also known as the 3Q five axis CNC.

Five-axis five-linkage machining center RV420 Configuration

DD five-axis turntable	Center effluent (gas)
RTCP tip following	Calibration package (imported/domestically produced probe)
Closed-loop mechanical spindle	Oil Mist Collector
CNC operating system
Handwheel controller
Contact tool setting instrument
Constant temperature oil cooler
Heat exchange of electric cabinet
Disc type tool magazine
Rigid tapping
Self cleaning visual door
Oil water separator
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Typical application of five-axis five-linkage machining center RV420

Medical Device Parts

Automobile mould insert

Impeller/scroll

Musical Instrument Accessories

Gear die and parts

Brittle and hard material

Ornaments/Handicrafts

Die Casting Parts

Jig type structural member

Composite processing structural part

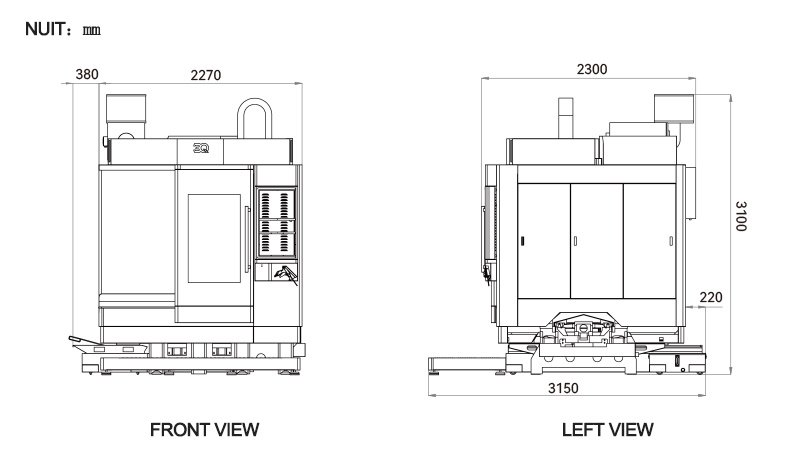

Performance parameters of five-axis five-linkage machining center RV420

Project	Standard Value
Model	RV420
X/Y/Z axis motion positioning accuracy	0.008 / 0.008 / 0.008mm
A/C axis motion positioning accuracy	±5″
Repeated positioning accuracy of X/Y/Z axis	0.006 / 0.006/ 0.006mm
Repeated positioning accuracy of A/C axis	4″
Working stroke of X/Y/Z axis	420 /760 / 650mm
Rotation angle of A/C axis	－120°~30°/ 360°
Diameter of table	Φ320mm
C-axis rotation diameter	420mm
Maximum Working Load	160kg
Maximum spindle power/maximum torque	22.5Kw/72N.m
Spindle Nose to Table Distance	0~650mm
Maximum spindle speed	15000rpm
Shank Specification	BTT40
Tool magazine capacity	30 pack (disc type)
X/Y/Z axis rapid movement speed	24m/min
A/C axis rapid movement speed	100/200rpm
Maximum X/Y/Z axis cutting speed	12m/min
Maximum A/C axis cutting speed	50/100rpm
Driving System	Five-axis five-linkage CNC system
Control system	Nanobus system
Working Voltage	Three phase 380V/50Hz
Air supply pressure	≥0.65MPa
Total weight of machine tool	5800Kg
Each equipment is tested and debugged by ball bar instrument before leaving the factory.
