Heavy duty vertical machining center VH960

Phone: +86(0)13761721518
Tel: 400-640-2005
Email: timpei@aliyun.com
The 3Q heavy duty vertical machining center VH960 is characterized by automatic tool change vigorous milling high speed finish machining high speed rigid tapping etc. Applicable to the processing of fixtures molds mechanical parts me
Inquiry

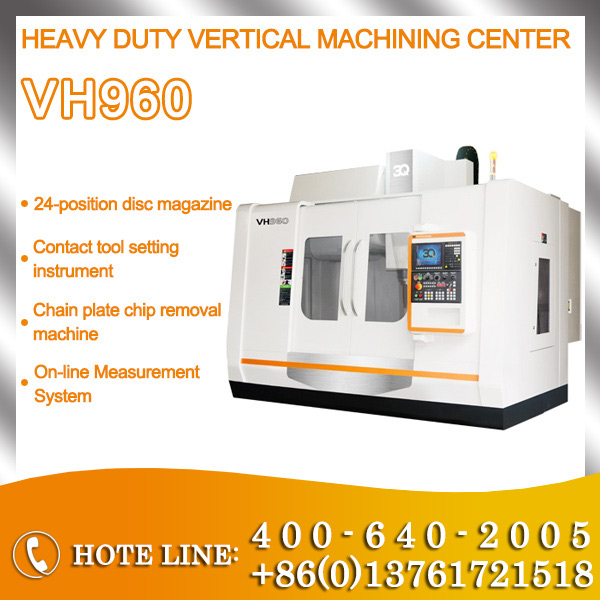

The 3Q heavy duty vertical machining center VH960 is characterized by automatic tool change, vigorous milling, high speed finish machining, high speed rigid tapping, etc. Applicable to the processing of fixtures, molds, mechanical parts, medical equipment, etc.

It integrates the functions of rough opening and precision processing with a single machine, which greatly reduces the procurement cost of enterprises and simplifies the processing process. It is a high-end CNC processing equipment with advanced technology and simple operation. 3Q heavy vertical machining center VH960 is also called high speed CNC, CNC high speed machine.

Heavy Duty Vertical Machining Center VH960 Standard

CNC operating system	Contact tool setting instrument
Handwheel controller	Chain plate chip removal machine
Constant temperature oil cooler	DD motor four-shaft
24-position disc magazine	Roller cam four-shaft
Pressure seal	DD motor five-axis
	On-line Measurement System
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Characteristics of Heavy Vertical Machining Center VH960

1. Three-axis adopts imported high-precision screw and roller line rail, while Z-axis six-slider design can support heavy load and fast processing, and ensure positioning accuracy.

2. The main body is made of cast iron with high strength and high toughness, the base is wide and solid, the column is box-shaped structure, and the saddle is widened and lengthened. Load Support Support design, solid and stable structure.

3. Equipped with direct-connected high-rigidity imported high-speed spindle, can be vigorously milling, high-speed finishing, high-speed rigid tapping.

4. Equipped with 24 cutter position disc type external encoder servo tool magazine, high speed tool change by manipulator. The unique protection technology can improve the stability of tool changing.

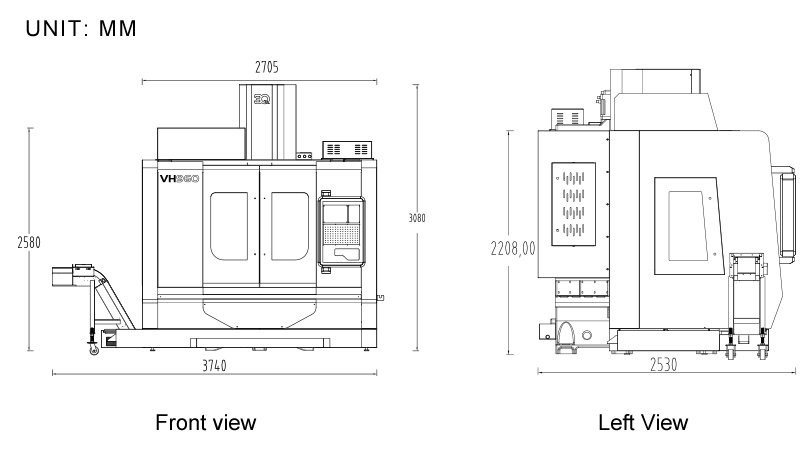

Technical parameters of heavy vertical machining center VH960

Model	VH960	VH1270
X/Y/Z axis motion positioning accuracy	±0.004/300mm	±0.004/300mm
Repeated positioning accuracy of X/Y/Z axis	±0.003mm	±0.003mm
Working stroke of X/Y/Z axis	900/600/700mm	1200/700/700mm
Workbench dimension	1000x600mm	1360x700mm
Spindle power	≤11Kw	≤11Kw
Distance from spindle nose to worktop	110-810mm	160-760mm
Working Load	≤600Kg	≤1000Kg
Electric spindle speed	≤12000rpm(φ150mm)	≤12000rpm(p150mm)
Shank Specification	BT40	BT40
Tool magazine capacity	24 (manipulator tool change)	24 (manipulator tool change)
X/Y/Z axis rapid movement speed	30m/min	24m/min
Maximum X/Y/Z axis cutting feed speed	12m/min	10m/min
Driving System	Absolute value servo system	Absolute value servo system
Control system	Nanobus control	Nanobus control
Working Voltage	Three-phase 380V/50Hz	Three-phase 380V/50Hz
Air supply pressure	≥0.6MPa	≥0.6MPa
Total weight of machine tool	6300Kg	9300Kg
Each equipment is tested and debugged by ball bar instrument before leaving the factory.
