1.5m fixed beam gantry fine carving machine XT15

The 3Q-1.5m fixed beam gantry fine engraving machine XT15 has the functions of high-precision engraving, milling, grinding, drilling and tapping. This model can be applied to the processing of jigs, carriers, molds, aluminum plates and insulating materials, the batch processing of 3C products, hardware accessories and high-gloss products, and the grinding of super-hard materials such as sapphire, ceramics, quartz and glass. 3 Q-1.5m fixed beam gantry fine carving machine XT15 is a precision CNC machining equipment with high cost performance, which has the functions of on-line measurement and intelligent correction. Engraving and milling machine can also be called precision engraving machine, precision engraving and milling machine.

1.5m Fixed-beam Gantry Fine Carving Machine XT15 Equipment Features

Mechanical structure: the crossbeam and the column adopt an integral casting structure, and the lathe bed adopts the integral cast iron design with floor ribs, which has strong vibration resistance.

Motion module: The bearing end adopts high-precision linear module to improve the assembly accuracy, and the imported grinding screw rod and guide rail make the machine tool maintain high precision and smoothness when running at high speed.

Numerical control system: it adopts the control system of Snag bus to avoid the position error caused by returning to the original point, and at the same time, it improves the response speed and resolution of the equipment, so as to make the arc position and small line section more uniform during high-speed processing.

High speed motorized spindle: ?120mm motorized spindle is adopted to ensure torque and rigidity, reduce the weight of Z-axis and avoid impact and vibration caused by excessive inertia.
Servo tool magazine: The self-developed servo D-type tool magazine is adopted, which has better sealing performance. The safety design of anti-collision tool is added in many places, which makes the tool change safer and more reliable and faster.

1.5m Fixed Beam Gantry Carving Machine XT15 Standard Configuration

CNC operating system	Rigid tapping
Handwheel controller	Axis of rotation
Contact tool setting instrument	Oil Mist Collector
Constant temperature oil cooler	Laser tool setting instrument
Heat exchange of electric cabinet	On-line Measurement System
Servo tool magazine
Quantitative automatic lubrication
SMC positive pressure seal
Led work light
Coolant circulation system
Air gun for flush gun
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Performance parameters of 1.5m fixed beam gantry fine carving machine XT15

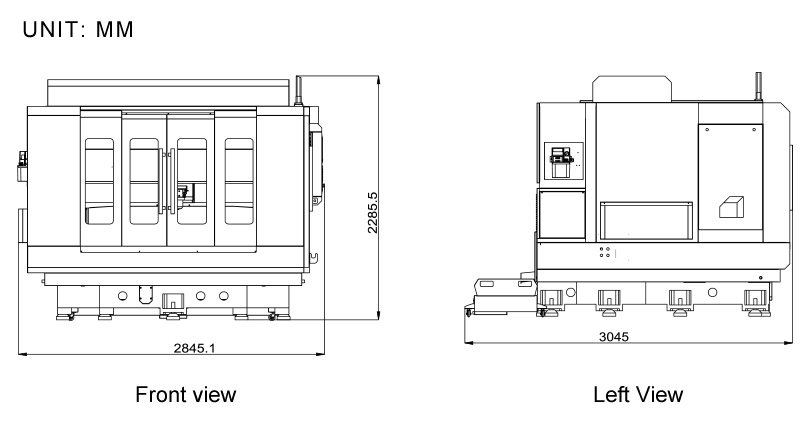

1. 5m Fixed Beam Gantry Fine Carving Machine XT15 Boundary Dimension
