Five-axis machine R series

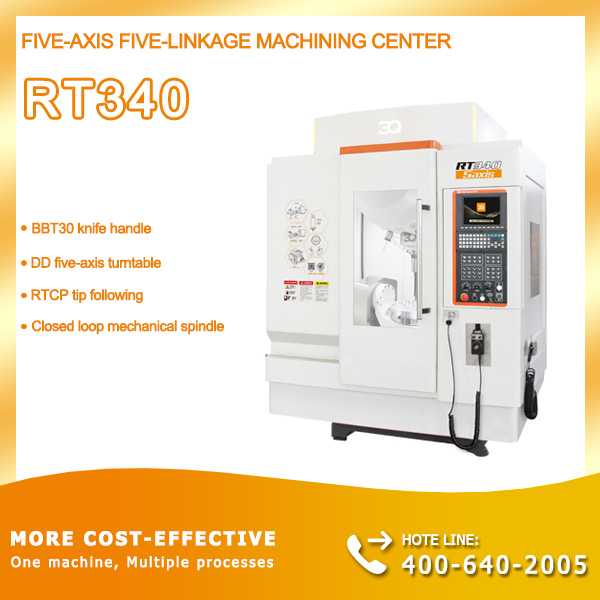

Five-axis five-linkage machining center RT340

Phone: +86(0)13761721518
Tel: 400-640-2005
Email: timpei@aliyun.com
3Q five axis five linkage machining center RT340 a small part five axis machining tool. It can perform five axis and five linkage machining with functions such as high-precision carving milling grinding cutting drilling etc. It is su
Inquiry

3Q five axis five linkage machining center RT340, a small part five axis machining tool. It can perform five axis and five linkage machining, with functions such as high-precision carving, milling, grinding, cutting, drilling, etc. It is suitable for five axis machining of die castings, titanium alloy precision parts, precision molds, optical molds, and complex hardware components. A machine has multiple functions and is equipped with functions such as automatic tool changing, in machine measurement, intelligent correction, etc. It is a powerful and cost-effective precision CNC machining equipment. Reduced procurement costs for enterprises and simplified the process of CNC machining. The 3Q five axis five linkage machining center is also known as the 3Q five axis CNC.

Five-axis five-linkage machining center RT340 Configuration

DD five-axis turntable	Calibration package (probe: imported/domestic)
RTCP tip following	Oil Mist Collector
Closed loop mechanical spindle
CNC operating system
Handwheel controller
Contact tool setting instrument
Constant temperature oil cooler
Heat exchange of electric cabinet
Clamp arm tool magazine
Rigid tapping
Oil water separator
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Typical application of five-axis five-linkage machining center RT340

Medical Device Parts

Automobile mould insert

Impeller/scroll

Musical Instrument Accessories

Gear die and parts

Brittle and hard material

Ornaments/Handicrafts

Die Casting Parts

Jig type structural member

Composite processing structural part

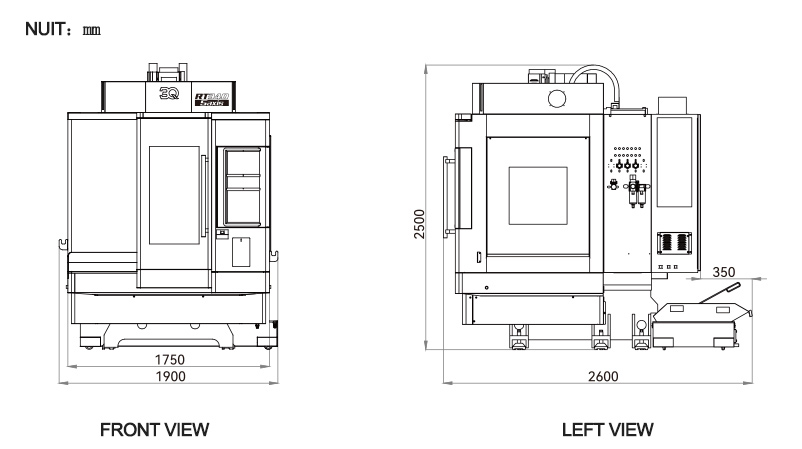

Performance parameters of five-axis five-linkage machining center RT340

Project	Standard Value
Model	RT340
X/Y/Z axis motion positioning accuracy	0.008 / 0.008 / 0.008mm
A/C axis motion positioning accuracy	±5″
Repeated positioning accuracy of X/Y/Z axis	0.006 / 0.006/ 0.006mm
Repeated positioning accuracy of A/C axis	4″
Working stroke of X/Y/Z axis	340 /400 / 350mm
Rotation angle of A/C axis	-30～120°/ 360°
Diameter of table	Φ260mm
C-axis rotation diameter	340mm
Maximum Working Load	40kg
Maximum Working Load	12kg
Maximum spindle power/maximum torque	11Kw/22N.m
Spindle Nose to Table Distance	110-460mm
Maximum spindle speed	24000rpm
Shank Specification	BTT30
Tool magazine capacity	21 pack
X/Y/Z axis rapid movement speed	24m/min
A/C axis rapid movement speed	100/200rpm
Maximum X/Y/Z axis cutting speed	12m/min
Maximum A/C axis cutting speed	50/100rpm
Control system	Five axis five linkage CNC system
Working Voltage	Three phase 380V/50Hz
Air supply pressure	≥0.65MPa
Total weight of machine tool	3500Kg
Each equipment is tested and debugged by ball bar instrument before leaving the factory.
