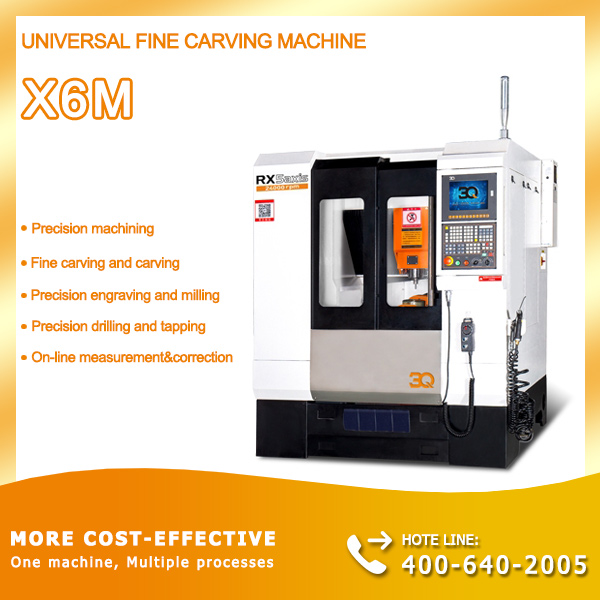

Universal fine carving machine X6M

3Q universal fine carving machine X6M has the functions of high precision carving, milling, grinding, drilling and tapping. This machine can change tools automatically, and is widely used in precision machining in various fields. 3Q universal fine engraving machine X6M is a precision CNC processing equipment with high cost performance, which has the functions of multi-axis linkage, on-line measurement, intelligent correction and so on. Engraving and milling machine can also be called precision engraving machine, precision engraving and milling machine.

Features of Universal Fine Carving Machine X6M

Mechanical structure: the crossbeam and the column adopt an integral casting structure, and the lathe bed adopts the integral cast iron design with floor ribs, which has strong vibration resistance.

Motion module: the bearing end adopts high precision linear module to improve the assembly precision, and cooperates with imported grinding screw rod and guide rail to keep high precision and smoothness when the machine tool runs at high speed.

CNC system: Delta control system adopts the bus control scheme, which greatly improves the response speed and resolution of the equipment. The arc position processing is more uniform. The absolute value encoder makes the machine leave the era of returning to zero and realizes zero error of repeated positioning accuracy of the machine.

High speed motorized spindle: Medium 100mm motorized spindle is adopted to ensure torque and rigidity, reduce the weight of Z-axis and avoid impact and vibration caused by excessive inertia.

Cooling system: The workpiece and cutting tools can be cooled by cutting oil or alcohol spray.

General Carving Machine X6M Standard Configuration

Delta control system	Axis of rotation
Handwheel controller	Dual Z-axis
Contact tool setting instrument	On-line Measurement System
SMC positive pressure seal	Laser tool setting instrument
Totally-enclosed integrate outer cover	36000 rpm spindle
Heat exchange of electric cabinet	Alcohol spray device
Quantitative automatic lubrication
Constant temperature oil cooler
Hand-held start-stop button box
Air Gun
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Performance parameters of universal fine carving machine X6M

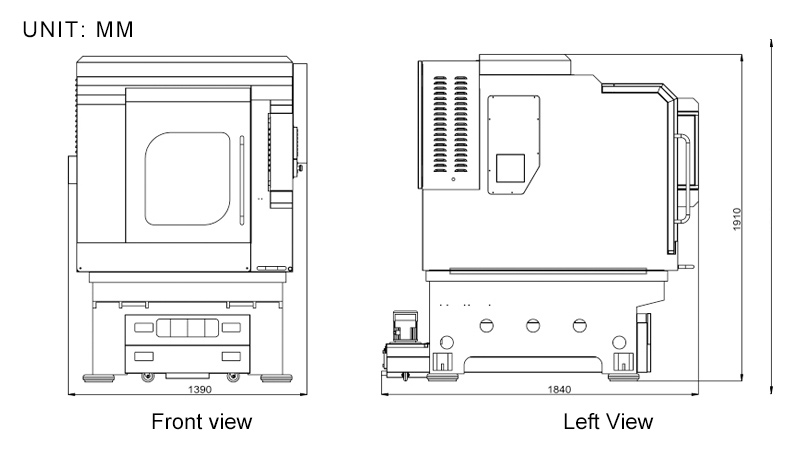

Universal fine carving machine X6M overall dimension
