Carving machine X series

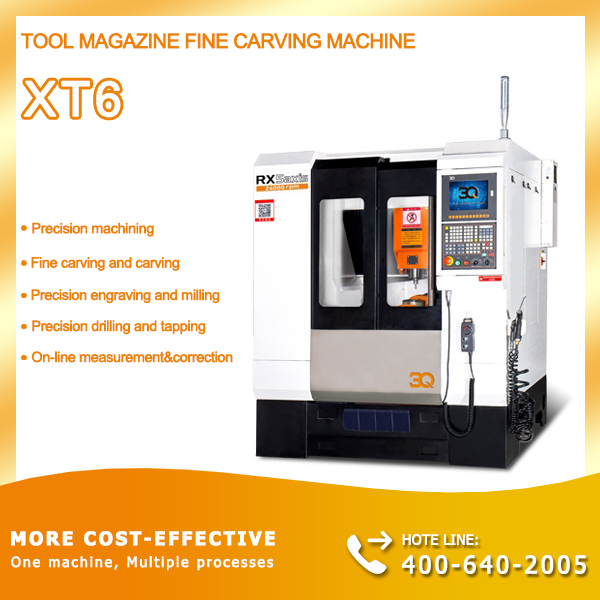

Tool magazine fine carving machine XT6

  • Phone: +86(0)13761721518
  • Tel: 400-640-2005
  • Email: timpei@aliyun.com
  • The 3Q tool magazine engraving machine XT6 has the functions of high-precision engraving engraving and milling grinding cutting drilling and tapping. 3Q tool magazine engraving machine XT6 can carry out multi-axis linkage processing an
  • Inquiry

The 3Q tool magazine engraving machine XT6 has the functions of high-precision engraving, engraving and milling, grinding, cutting, drilling and tapping. 3Q tool magazine engraving machine XT6 can carry out multi-axis linkage processing, and equipped with automatic tool change, machine measurement, intelligent correction and other functions, is a powerful, cost-effective precision CNC processing equipment. Precision carving machine can also be called precision carving machine, precision carving milling machine and so on.

Characteristics of Tool Magazine Carving Machine XT6

The crossbeam and column adopt integral casting structure, and the lathe bed adopts integral cast iron design with landing ribs, which has strong vibration resistance.

The bearing end adopts high precision linear module to improve the assembly precision and cooperates with imported grinding screw rod and guide rail to keep high precision and smoothness when the machine runs at high speed.

It adopts Sadek's brand Sadek bus control system to avoid the position error caused by returning to the origin, and at the same time to improve the response speed and resolution of the equipment, so as to make the arc position and small line segment more uniform in high-speed processing.

The 9100mm motorized spindle is adopted to ensure the torque and rigidity, reduce the weight of Z-axis, and avoid the impact and vibration caused by excessive inertia.

The self-developed servo D-type tool magazine has better sealing performance, and the anti-collision tool safety design is added in many places, so the tool change is safer and more reliable, and the speed is faster.

Tool magazine engraving machine XT6 standard configuration

CNC operating system Rigid tapping
Handwheel controller 36000rpm
Contact tool setting instrument Screw chip removal machine
Constant temperature oil cooler Axis of rotation
Heat exchanger of electric cabinet Oil Mist Collector
Servo tool magazine Laser tool setting instrument
Quantitative pressurized automatic lubrication Laser tool setting instrument
SMC positive pressure seal
LED work light
Coolant circulation system
Flushing air gun
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration


Performance parameters of tool magazine carving machine XT6

X/Y/Z axis motion positioning accuracy 0.01/0.01/0.008mm
Repeated positioning accuracy of X/Y/Z axis 0.008/0.008/0.005mm
Working stroke of X/Y/Z axis 600/500/160mm
Workbench dimension  640x540mm (Uniaxial)
Distance from spindle nose to worktop 110- 270mm
Working Load ≤100Kg
Spindle speed ≤24000rpm(φ100)
Shank Specification ISO25
Tool magazine capacity 10 pack
Fast moving speed 24m/min
Cutting speed ≤10m/min
Driving System Absolute value servo system
Working Voltage 380V/50Hz
Air supply pressure ≥0.55MPa
Total weight of machine tool 2100Kg
Total machine tool power 6Kw
Each equipment is tested and debugged by ball bar instrument before leaving the factory.

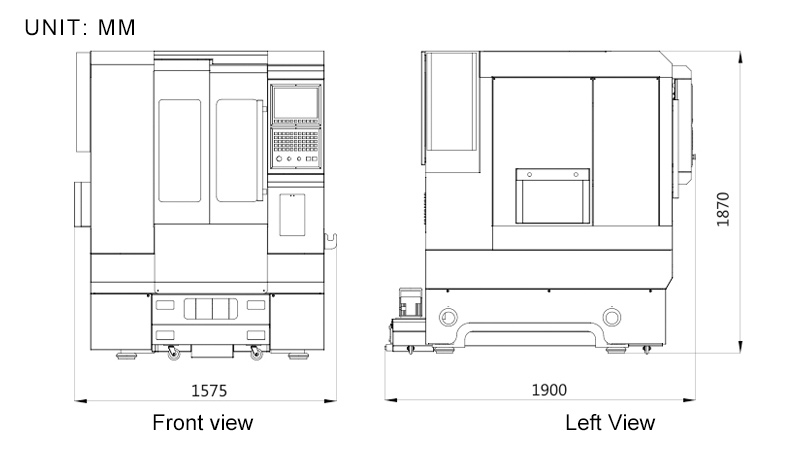

Overall dimension of cutter magazine fine carving machine XT6
